GUARDRAIL SYSTEM

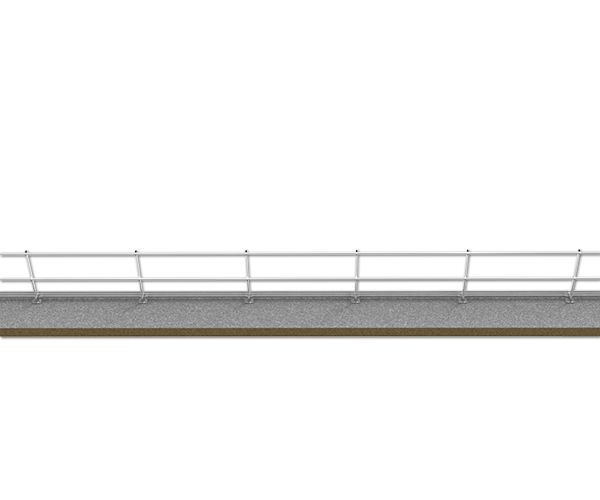

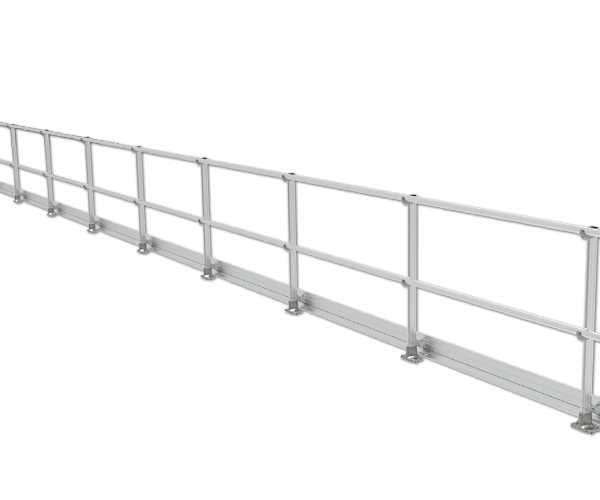

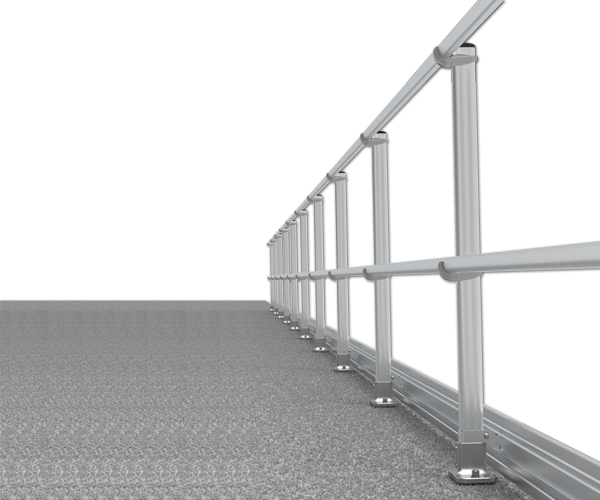

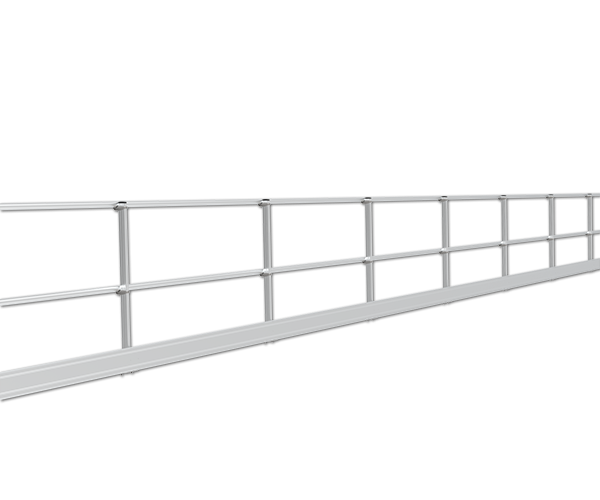

Permanent guardrail with kickboard

The permanent guardrail with toeboard is designed for areas where no parapet on edge of wall. This permanent guardrail system provides a barrier that does not become a trip hazard while working around equipment.

Material

Aluminum

Customization

Post Height

System Scale

Packaging


×
Please contact the customer service for the password

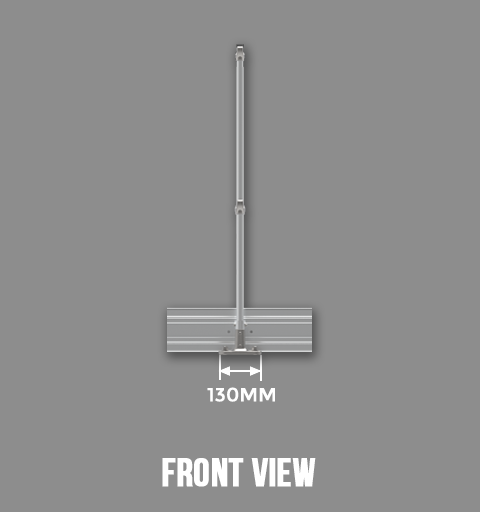

usage specification

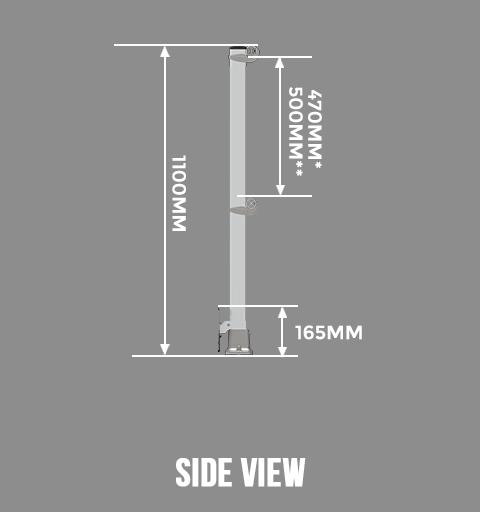

                                           ① The minimum vertical height of upright is 1100mm                                  ② The maximum height between handrail and kneerail is 500mm

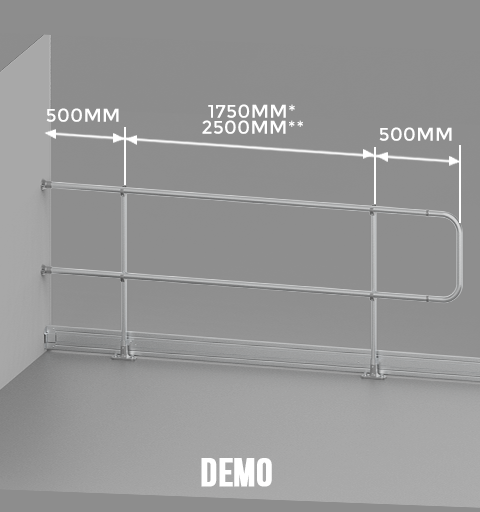

                                           ③ The maximum allowed space between wall and first post is 500mm       ④ The maximum allowed space between free end and post is 500mm

                                           ⑤ The maxmium allowed span between posts is 1750mm                          ⑥ The thickness of parapet should be greater than 120mm




                   *EN14122-3:2016

                  **EN13374:2013+A1:2018
