FIXED LADDER

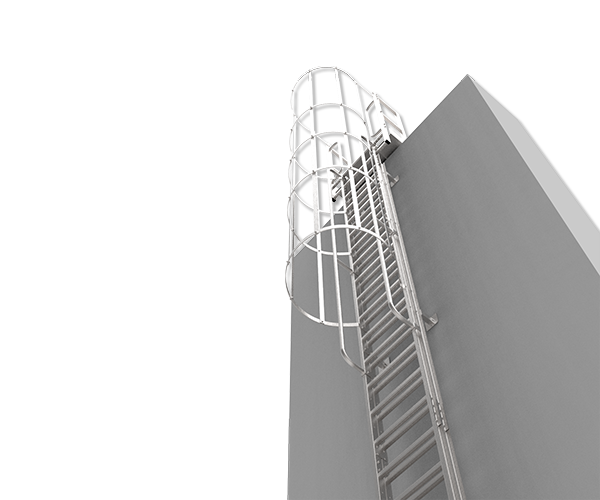

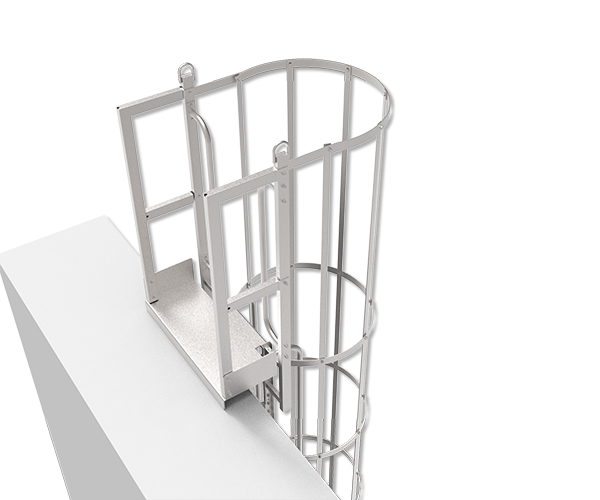

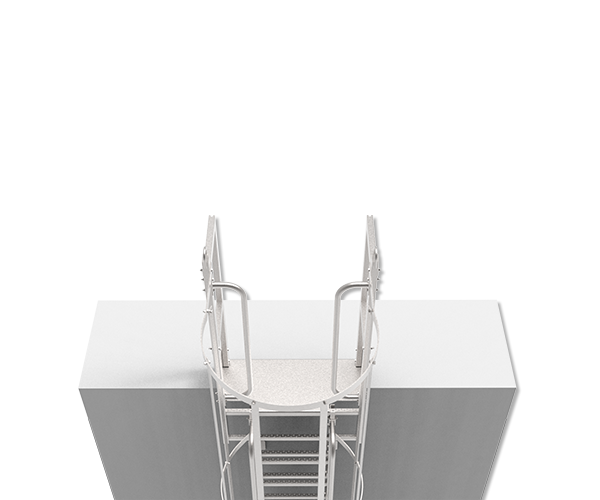

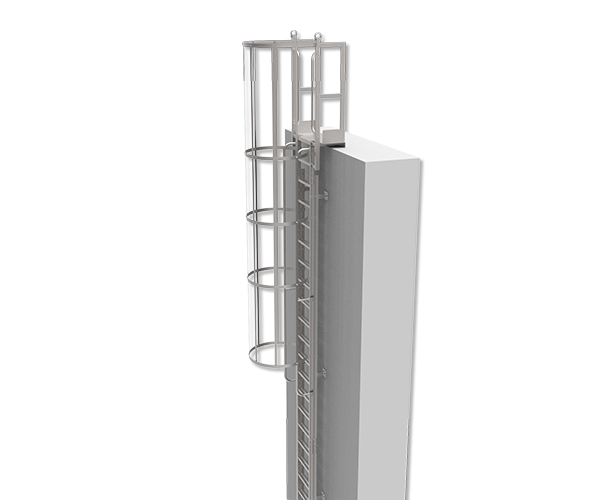

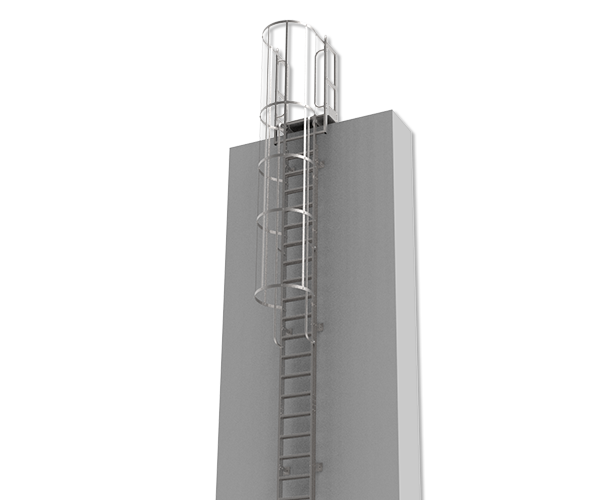

Caged steel fixed ladder

When a heavy duty ladder extends more than 20 feet, you are required to have a cage to meet safety requirements. It works perfectly with personal fall arrest system.

Material

Galvanzied Steel

Customization
×
Please contact the customer service for the password

usage specification

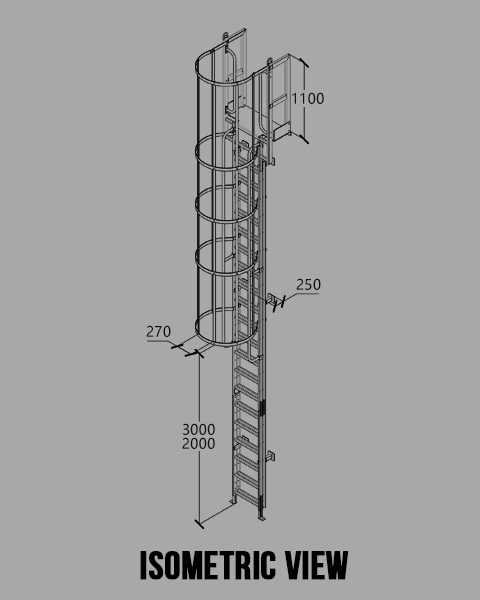

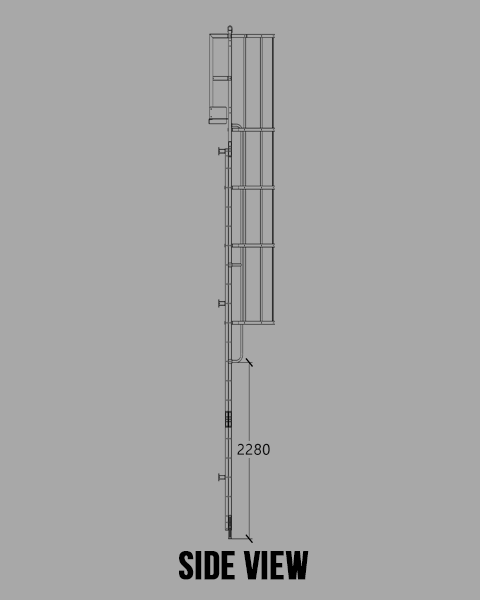

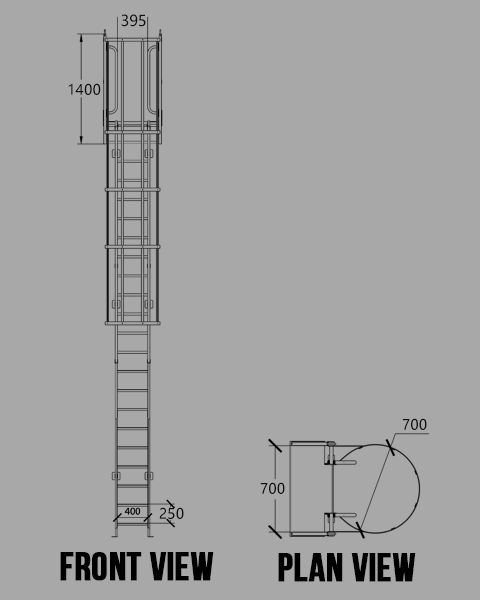

                                                           ① The landing platform length is 1400mm                                      ② The rung width is 400mm

                                                           ③ The frist rise of ladder should be 100-400mm                             ④ The width of landing exit is 650mm

                                                           ⑤ The rise of rung is 250mm                                                           ⑥ The depth of wall bracket is 250mm

                                                           ⑦ The diameter of cage hoop is 700mm                                         ⑧ The allowed distance between land and cage is 2000-3000mm

                                                           ⑨ The space between every two cage stiles is 270mm                  ⑩ The least allowed hight of  every two cage hoops is 1500mm
